Vibro-L-clip Model VIL CS
VIBRO Model VLP‑CS is a universal, highly adaptable acoustic isolation component. Its primary application is the decoupling of wall framing and ceiling systems, and it is suitable for both new build and retrofit installations. The VLP‑CS should be selected wherever elements require acoustic separation to control noise transmission and mitigate vibration.

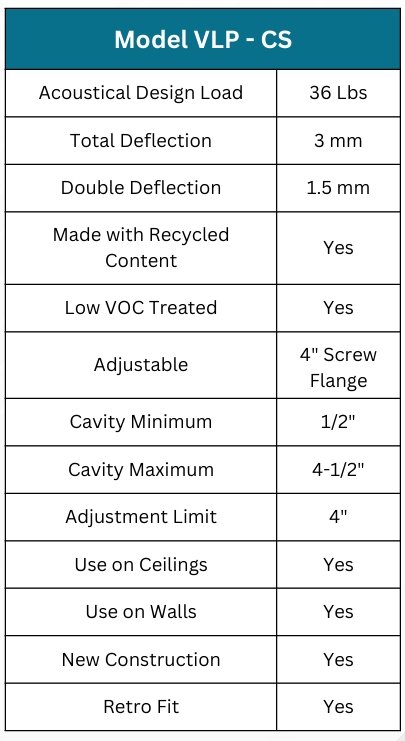

Key Specifications
The VLP‑CS should be selected wherever elements require acoustic separation to control noise transmission and mitigate vibration.
Product Details
VIBRO Model VLP‑CS is a universal, highly adaptable acoustic isolation component. Its primary application is the decoupling of wall framing and ceiling systems, and it is suitable for both new build and retrofit installations. The VLP‑CS should be selected wherever elements require acoustic separation to control noise transmission and mitigate vibration.
- Suspended and dropped ceilings
- Decoupled wall braces
- Resilient connectors for isolated wall linings
- Loudspeaker mount isolation
- Exhaust and ventilation fan isolation
- Recessed lighting enclosure isolation,
- projector mount isolation
- Electrical box isolation
- Ceiling fan isolation
- Garage door motor isolation
- Garage door rail isolation

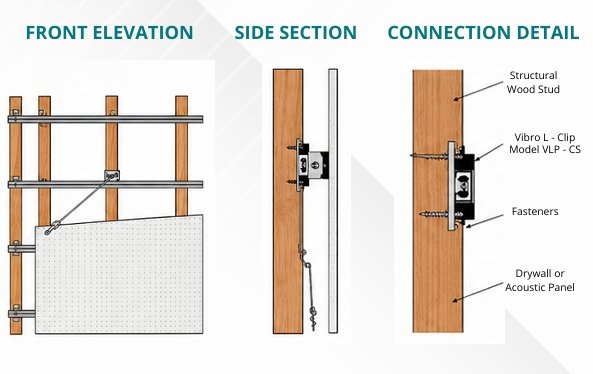

WOOD FRAMING
Recommended Layout:
Arrange Clips in a grid pattern at 600 mm x 1200m (24″48″)spacing. Ensure consistent alignment across the wall framing
STEEL FRAMING
Fixing Method:

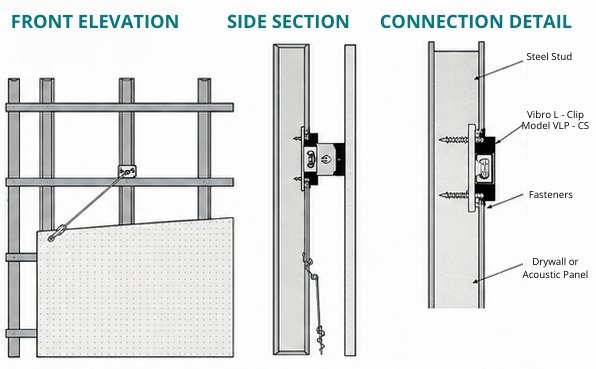

- Secure each isolation clip firmly to the structural frame using suitable fasteners.
- Confirm that the metal insert/core is tightly seated against the framing member.
Installation Guide:
- Maintain a continuous horizontal row of clips across the wall.

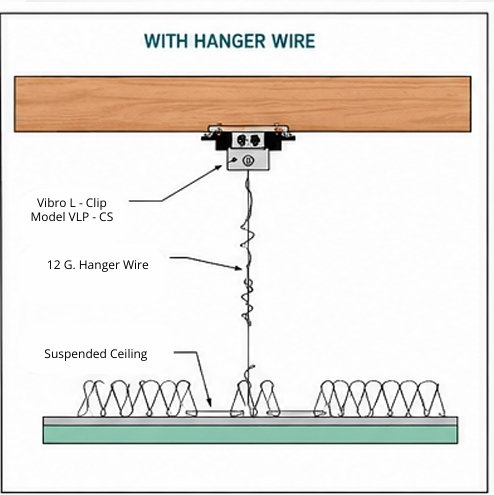

- Feed 12 gauge hanger wire through the designated opening in the clip where required.
- For suspended systems, follow the ceiling/grid manufacturer’s installation
recommendations
STEEL FRAMING
Fixing Method:
- Secure each isolation clip firmly to the structural frame using suitable fasteners.
- Confirm that the metal insert/core is tightly seated against the framing member.
WOOD OR STEEL FRAMIN
Support Capacity:
- Each clip is designed to carry a
maximum load of 36 lbs (16 kg)
Installation Guide:
- Attach the sound isolation clip to the ceiling structure using minimum two approved fasteners.
- Position clips within 200 mm (8″) of wall perimeters.

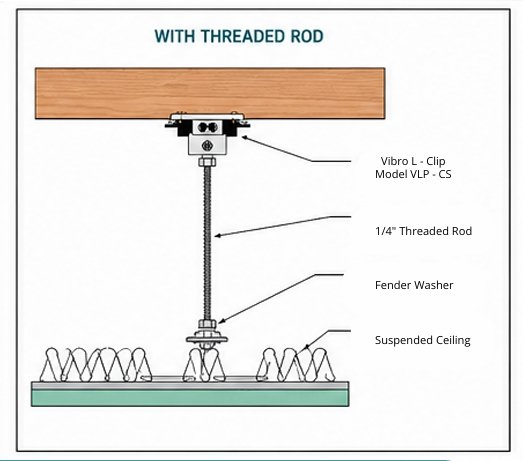

- Insert a 1/4″ threaded rod through the inner ring of the clip.
- Use a fender washer to distribute load evenly on the clip assembly
GENERAL REQUIREMENTS
- Vibro L-Clip Model VLP-CS is intended for acoustic isolation only.Do not use for heavy load bearing applications.
- Apply acoustic sealant at all perimeters and joints to optimize sound insulation performance.
- When fixing to steel studs, ensure a minimum thickness of 20 gauge
