Premium Vibration Isolation

Vibro Pads VRCP

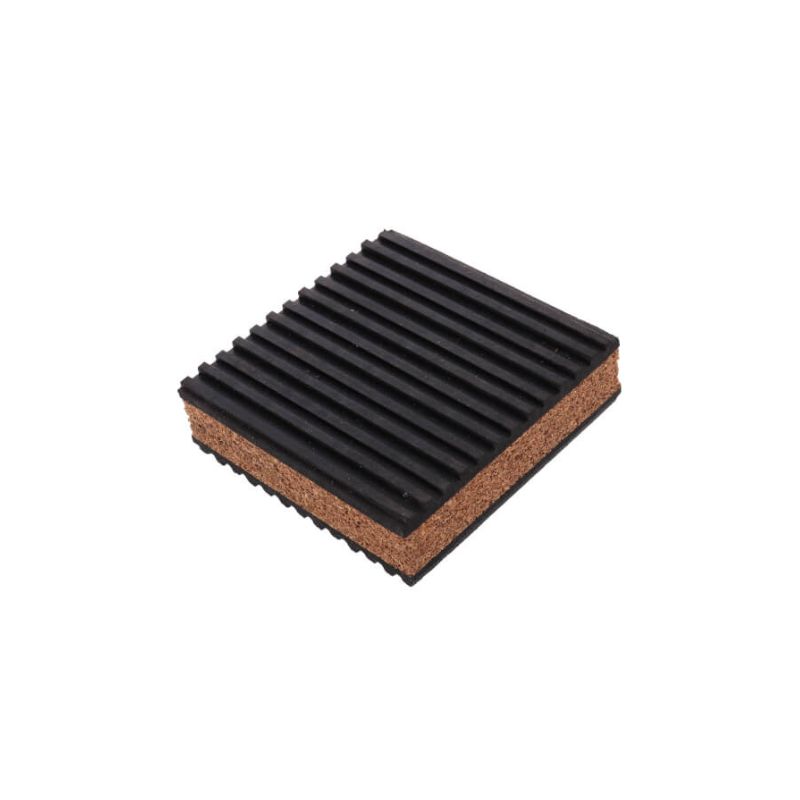

VRCP Pads are engineered vibration control elements composed of elastomeric layers bonded with cork inserts, forming a multi-layered structure that delivers reliable performance in light-to-medium duty applications. The ribbed surface geometry enhances frictional stability, making these pads suitable for installations requiring non-bolted support.

Key Specifications

Constructed using high-grade elastomer and natural cork, the VRCP series is available in single or composite-layer formats.

Request Quote
Enquiry Now
Untitled design (6)

Product Details

Constructed using high-grade elastomer and natural cork, the VRCP series is available in single or composite-layer formats. The cork interlayer acts as a natural damping medium, improving load distribution and vibration attenuation. With hardness options ranging from 40 to 80 Shore A, these pads are designed to accommodate varying load intensities while preserving material resilience. The elastomer is formulated to resist degradation from oils and moisture, ensuring the pad remains within its elastic operating range throughout its service life.

Deflection capabilities span from 2 mm to 5 mm, supporting effective isolation across a range of equipment types. VRCP Pads are supplied in modular dimensions of 2″, 3″, 4″, 6″, and 9″, along with full-format 18″ (457 mm) square sheets that can be tailored on-site to meet specific installation needs. Their design is particularly suited for mitigating airborne noise, mechanical shock, and high-frequency vibration in non-critical zones or grade-level installations.
Recommended for use in scenarios where mechanical anchoring is not preferred, VRCP Pads are well-suited for HVAC units, rotating machinery, pumps, chillers, generators, and workshop equipment where vibration control is required without complex mounting provisions.
  • Anti-skid surface with alternating high-low rib design
  • Reduces noise and minor vibrations
  • Optimized rib structure for maximum deflection
  • True elastomer-in-shear loading capacities
  • Static deflections up to 5 mm
  • Resistant to oil and corrosion
  • Can be molded in custom sizes and materials
  • Suitable for relocated machinery
  • No bolting required
  • Quick and simple installation
  • HVAC systems (air conditioners, chillers, air handling units).
  • Rotating machinery (motors, pumps, generators, fans).
  • Light to medium-duty industrial and process equipment.
  • Machine shop equipment and general-purpose machinery.
  • Maximum load capacity: 130 – 19150 Kgs
  • Rated static deflection: 1 – 5mm
  • Maximum static deflection. 1 – 5mm
  • True elastomer-in-shear loading for reliable isolation.

SIZE

DIMENSIONS

[MM]

MAX

DEFL.

LOAD RANGE

[KG]



LENGTH

WIDTH

HEIGHT

[MM]

2” 65 DURO

50.8

50.8

20.57

5.0

130 – 236

3” 65 DURO

76.2

76.2

20.57

5.0

293 – 532

4” 65 DURO

101.6

101.6

20.57

5.0

520 – 946

6” 65 DURO

152.4

152.4

22.35

5.0

1170 – 2128

9” 65 DURO

228.6

228.6

22.35

5.0

4681 – 8510

18” 65 DURO

457.2

457.2

22.35

5.0

10880 – 19150
