Stainless steel braided elastomeric hose connectors

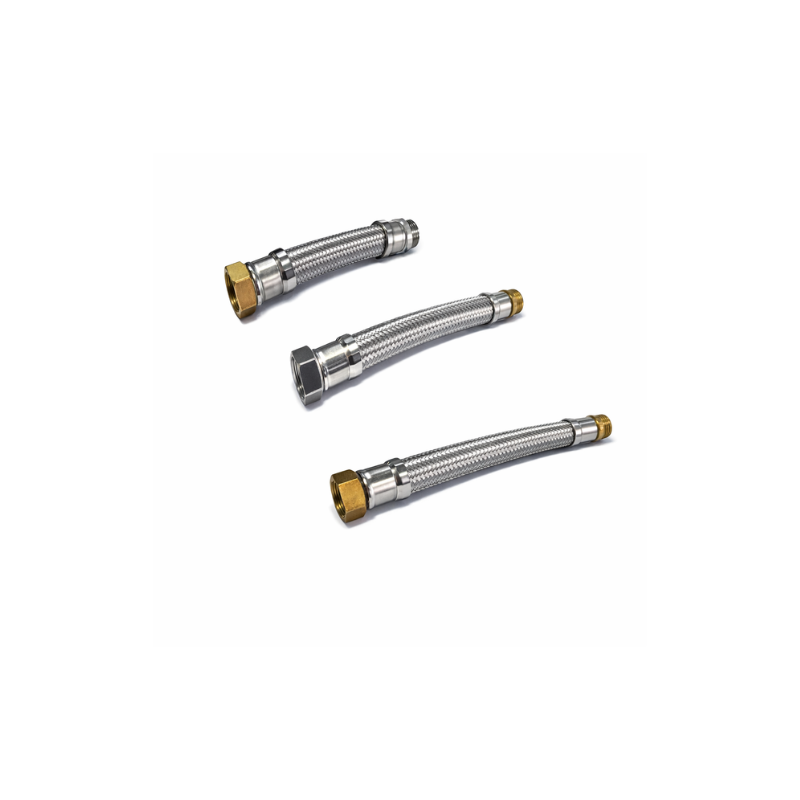

Flexible connectors consist of an elastomeric hose protected by a stainless steel outer braid and crimped ferrules. They are designed to provide a flexible, pressure‑tight connection between mechanical equipment and pipework, while limiting vibration and noise transmission and accommodating minor misalignment.
Key Specifications
They are designed to provide a flexible, pressure‑tight connection between mechanical equipment and pipework, while limiting vibration and noise transmission and accommodating minor misalignment.
Product Details
- HVAC systems: Fan coil units, AHUs, chilled and hot water circuits.
- Plumbing and sanitary: Water heaters, sanitary fixtures, industrial kitchen equipment.
- General services: Flexible connections to pumps and rotating equipment to reduce vibration and stress at pipe terminations.

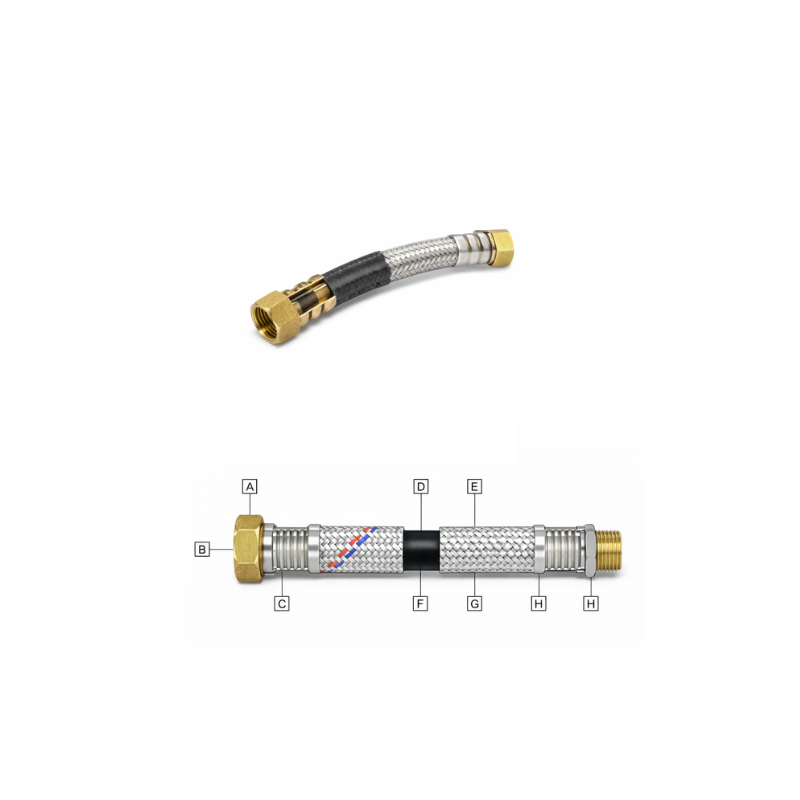

- Hose: Material: EPDM elastomer, smooth bore Function: Provides flexibility and internal pressure containment.
- External braid: Material: Stainless steel AISI 304 Function: Reinforces the hose, limits elongation, protects against mechanical damage.
- Ferrules/sleeves: Material: Stainless steel AISI 304 Function: Mechanically crimped to secure braid and hose to end fittings.
- End fittings: Material options: Brass or carbon steel (zinc‑plated or galvanised) Types (examples):
- Male threaded (MPT)
- Swivel female threaded (FPT) with gasket
- Other configurations on request
- Gasket/washer: Material: EPDM (for swivel female ends).
- Working fluid: Potable water, chilled water, hot water and similar non‑aggressive media compatible with EPDM and stainless steel.
- Temperature range: to (continuous service).
- Maximum operating pressure at : Up to 20 bar (see table by size).
- Maximum operating pressure at : 10–16 bar depending on size (see table).
- Installation: Not to be used in torsion; observe minimum bend radius; support adjacent pipework to avoid excessive loads on connectors.
5.1 Nominal sizes and dimensions
Nominal size | DN (approx.) | Inner hose dia. (mm) | Outer hose dia. (mm) | Fitting inner dia. (mm) |
½” | 15 | 16.8 | 22.0 | 12 |
¾” | 20 | 20.0 | 27.5 | 16 |
1″ | 25 | 24.0 | 34.5 | 17.5 |
1¼” | 32 | 32.0 | 41.0 | 23 |
1½” | 40 | 40.0 | 52.0 | 32 |
2″ | 50 | 50.0 | 63.0 | 41 |
Values adapted from typical stainless steel braided elastomeric hose connector data.
5.2 Hydraulic and mechanical performance
Nominal size | Nominal flow at 3 bar (L/min) | Min. bend radius (mm) | Max. working pressure @23°C (bar) | Max. working pressure @82°C (bar) | Max. temperature (°C) |
½” | 134 | 50 | 20 | 16 | 110 |
¾” | 220 | 75 | 20 | 16 | 110 |
1″ | 250 | 110 | 20 | 10 | 110 |
1¼” | 450 | 115 | 20 | 10 | 110 |
1½” | 850 | 195 | 20 | 10 | 110 |
2″ | 1400 | 290 | 20 | 10 | 110 |
