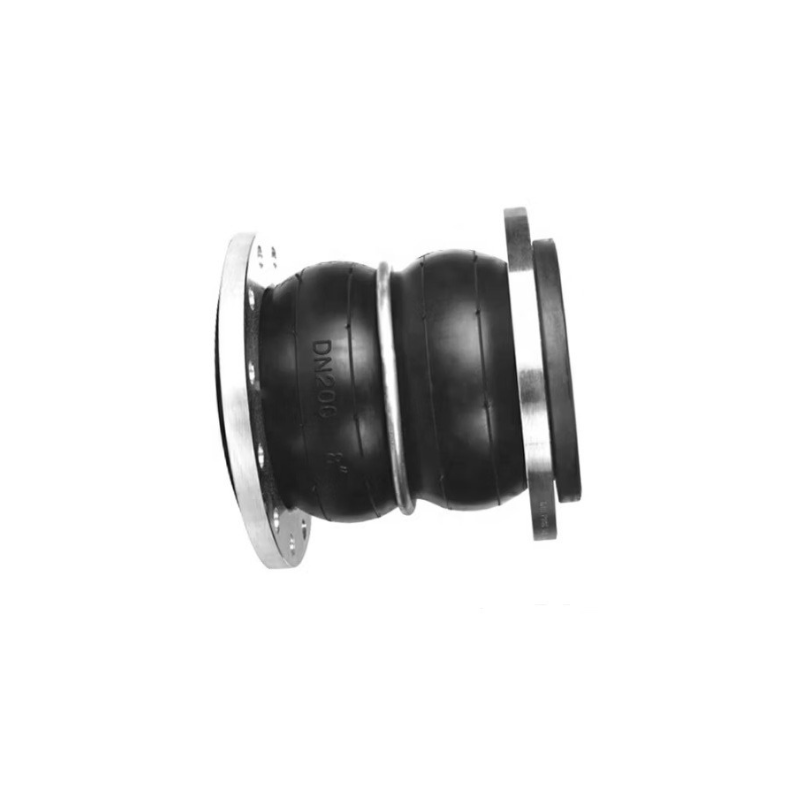

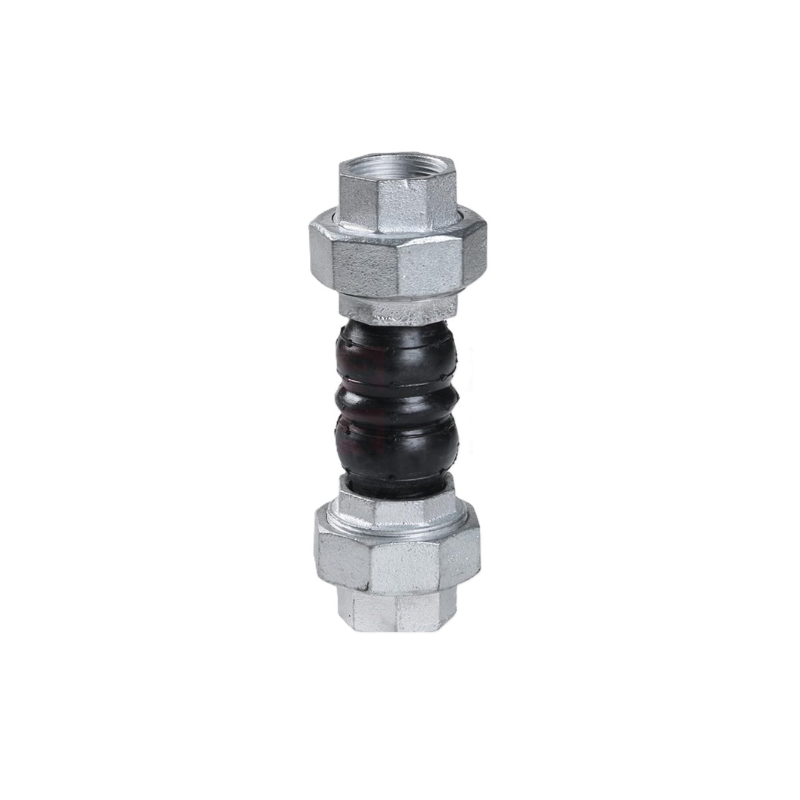

Vibro Connectors VRSF

VRSF flexible expansion joints commonly referred to as rubber joints are engineered to absorb movement, isolate vibration, and reduce noise in piping systems across a wide range of industrial applications. These joints are widely utilized in water supply and treatment, electrical utilities, chemical processing, and marine mooring systems due to their robust performance and versatile material compatibility.

Key Specifications

The rubber body of each expansion joint is constructed using a multi-layered vulcanization process:

Inner Layer: Tailored to suit the conveyed medium, using rubber types such as NR, SBR, IIR, NBR, EPDM, CR, FKM, etc., depending on chemical and thermal requirements
Reinforcement Layer: Made of high-strength nylon cord fabric to ensure pressure containment and structural integrity
Outer Layer: Composed of aging-resistant polar rubber for long-term durability in exposed or corrosive environments

Product Details

Purpose

The rubber body of each expansion joint is constructed using a multi-layered vulcanization process:

Inner Layer: Tailored to suit the conveyed medium, using rubber types such as NR, SBR, IIR, NBR, EPDM, CR, FKM, etc., depending on chemical and thermal requirements
Reinforcement Layer: Made of high-strength nylon cord fabric to ensure pressure containment and structural integrity
Outer Layer: Composed of aging-resistant polar rubber for long-term durability in exposed or corrosive environments

To prevent natural shrinkage, premature aging, and cracking during extended service life, embedded steel wire reinforcements are incorporated for added structural protection and dimensional stability.

Chemical & Thermal Resistance: Excellent resistance to heat, acids, alkalis, oils, and corrosive media—making them suitable for aggressive operating conditions
Vibration & Noise Isolation: Effectively dampens mechanical vibration and reduces pressure pulsations and noise transmission throughout the piping system
Elasticity & Sealing Integrity: Offers high elasticity, superior air tightness, and reliable sealing performance under varying pressure and vacuum conditions
Movement Absorption: Accommodates axial, lateral, and angular displacements caused by thermal expansion, equipment motion, or installation misalignment

Choosing the correct VRSF flexible expansion joint requires careful consideration of the following parameters:

Compatibility between the conveyed medium and selected rubber material
Full operating range of temperature, pressure, and vacuum
Required movement (axial, lateral, angular) based on system dynamics
Dimensional spacing between pipe flanges and connection type

With this information, our engineering team can assist in identifying the optimal expansion joint configuration to meet your specific application requirements

Noise & Vibration Isolation: Effectively dampens vibration and reduces noise transmission from pumps, fans, and mechanical equipment into the piping network
Flexible Installation: Compact and lightweight design with flanged ends allows for quick, secure installation and easy alignment
Corrosion Resistance: The seamless rubber body resists degradation from high temperatures, aggressive media, and oil-based fluids—protecting internal surfaces and extending service life
Multi-Directional Movement Compensation: Accommodates axial, lateral, and angular displacements caused by thermal expansion, vibration, or misalignment—without being restricted by flange neutrality
Pressure & Vacuum Tolerance: Engineered to withstand high internal pressures and vacuum conditions while maintaining structural integrity
Material Compatibility Guidance: Proper selection requires understanding media compatibility, operating temperature and pressure ranges, vacuum conditions, movement requirements, and flange dimensions. Our engineering team is available to assist in determining the optimal connector for each application

VRSF flexible expansion joints are extensively utilized across a wide range of infrastructure and industrial sectors due to their exceptional versatility, durability, and media compatibility. Their ability to absorb movement, isolate vibration, and resist aggressive operating conditions makes them an essential component in both utility and process piping systems.

These joints are commonly deployed in:

Chemical Processing Plants
Construction and Civil Infrastructure
Water Supply and Drainage Networks
Petroleum and Refining Systems
Light and Heavy Industrial Installations
Refrigeration and HVAC Systems
Sanitation and Water Heating Applications
Fire Protection Networks
Power Generation Facilities

Depending on the selected rubber compound—such as NR, SBR, IIR, NBR, EPDM, CR, or FKM—VRSF expansion joints can be tailored to meet specific performance requirements, including:

Acid and alkali resistance
Corrosion and oil resistance
High temperature and radiation tolerance
Wear and aging resistance

This adaptability allows the joints to perform reliably across a wide spectrum of media and environmental conditions.

Typical System Applications:

Water Supply & Drainage Systems
HVAC Installations
Fire Protection Networks
Pump and Compressor Connections
Pharmaceutical and Paper Processing
Marine and Shipboard Piping
Fans, Blowers, and Air Handling Units

Their capacity to accommodate significant displacement, withstand harsh media exposure, and streamline installation makes VRSF flexible expansion joints a trusted solution for engineers and contractors seeking robust performance in dynamic piping environments.
